詳細情報 |
|||
| 定格電圧: | 220V -250V | 材料: | 鋼鉄 |
|---|---|---|---|
| ワイヤー＆コード＆ケーブル: | 10-100M | 定格電流: | 16A～250A |
| プラグの種類: | カスタマイズされた電源コードとプラグ | 直径: | 1/2インチ、6.5*10mm、3/4インチ |
| 製品名: | ブリッジ用電動ケーブルドラム | ||
製品の説明

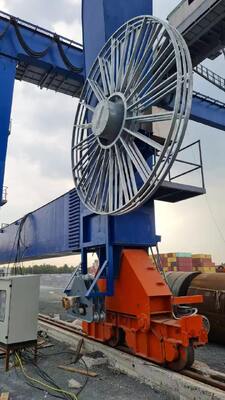

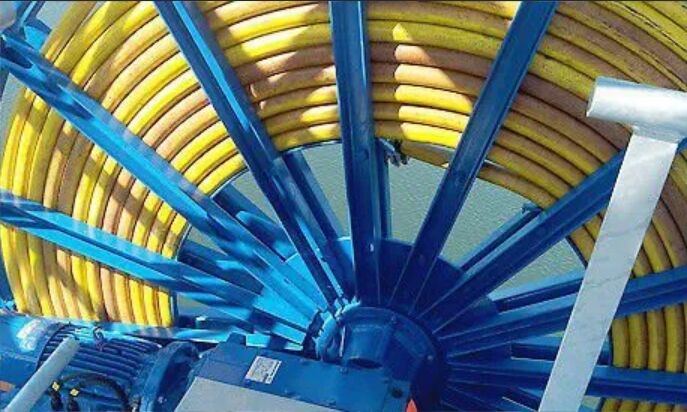

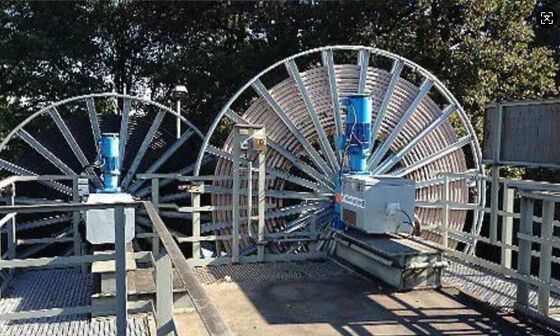

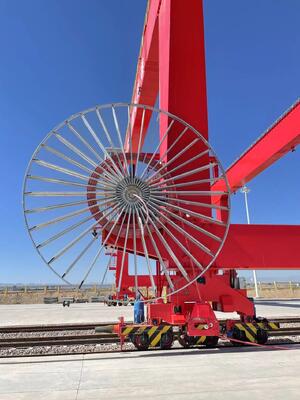

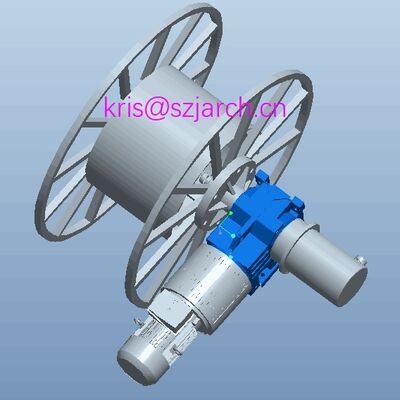

JARCH Gantry Crane 100m High current Crane Cable Reel Motorized Cable Drum with cable 100m
100m spring return cable reel for bridge and gantry crane
Based on the comprehensive technology characteristics at home and broad, our company independently
develops and processes the windingdrum in various forms and various specifications with advanced technology,
which is widely used for the electric mobile equipment as the crane,hoisting electromagnet, motor grab, fast-p, buggy ladle etc.
After many years site validation, the products are proved to be functioning smoothlyand be reliable in performance,
which are well received consistent high praise from many units. According to the way of shipping, the winding drumproduced
and processed by our company could be classified into: cable drum, signal drum, hose reel (for transporting gas or liquid).
According tostructure, they are classified into: the method with slip installed inside, slip installed outside and that with
cantilever type. According to the drivingtype, they are classified into:the spring type, external mechanical forces,
type of counterweight, torque electric, constant tension, JQD, hysteretic,type of fluid coupling etc
Selection Guide:
100m spring return cable reel for bridge and gantry crane
For cables light in weight and short in moving distance, you can choose the spring or constant tension ones generally;
for cables heavy inweight and long in moving distance, you are suggested to choose the torque electric or magnetic hysteresis types;
for cables heavy in weight andused in high temperature environment, you' d better choose the hammering type; for small cables with
long moving distance and in small intallationspace, you can choose mechanical external force or magnetic coupling ones.
Elastic cable reel applies for the following mobile electrical equipment under AC 500V.
Packing Methods
100m spring return cable reel for bridge and gantry crane
1. Use the wooden box made of inspection-free plates in line with export requirements, and use plywood with a thickness of 9mm-15mm.
2. The wooden box made of solid wood can meet the requirements of export through fumigation and detoxification.
3 boxes board joint is tight, the box board combination is smooth without dislocation, the cloth nail is reason
able, the reinforcement belt is not less than 2, to meet the requirements of the export
